Sheet Metal Bending: A Comprehensive Guide to Deformation and Techniques
Introduction
Sheet metal bending is a fundamental process in the metal stamping and fabrication industries, used to shape materials such as bars, sheets, tubes, and profiles into specific angles and forms. This process is essential for creating a wide range of products, from automotive components to household appliances. Understanding the deformation characteristics and methods of sheet metal bending is crucial for achieving high-quality results. ChinaCustomStamping hereby provides an in-depth exploration of sheet metal bending, including its deformation principles, common bending methods, and their applications. By the end of this guide, you will have a thorough understanding of how to optimize sheet metal bending for your manufacturing needs.
What is Sheet Metal Bending?
Sheet metal bending is a stamping process that involves applying force to a workpiece to change its shape without altering its volume. The process typically involves bending the material around a straight axis to create angles, curves, or complex geometries. The deformation occurs primarily in the bending zone, where the material undergoes both tensile and compressive stresses.
Key Concepts in Sheet Metal Bending
- Bend Radius: The inside radius of the bend, which affects the material’s ability to deform without cracking.
- Springback: The tendency of the material to return to its original shape after bending, which must be accounted for during the design and manufacturing process.
- Neutral Axis: The line within the material that experiences neither tension nor compression during bending.
Common Bending Methods
Sheet metal bending can be achieved using various methods, each suited to specific applications and material types. Below are the most commonly used bending techniques:
1. Stamping Die Bending
Stamping Die bending is one of the most widely used methods for bending sheet metal. It involves placing the workpiece between a punch and a die, which are mounted on a press brake machine. The punch applies force to the material, causing it to bend around the die.
Applications:
- V-shaped bends
- U-shaped bends
- Complex geometries with multiple bends
Advantages:
- High precision and repeatability
- Suitable for a wide range of materials and thicknesses
- Capable of producing sharp bends
Challenges:
- Requires skilled operators
- Tooling costs can be high for custom shapes
2. Folding
Folding is a bending method that uses a folding machine to clamp the workpiece and bend it along a straight axis. This method is often used for creating large panels or enclosures.
Applications:
- Boxes and enclosures
- Panels with straight bends
Advantages:
- High accuracy for long bends
- Minimal tooling requirements
- Suitable for large workpieces
Challenges:
- Limited to straight bends
- Not suitable for complex geometries

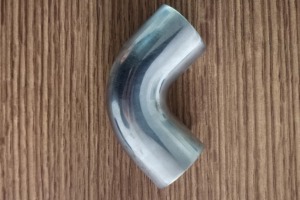

3. Stretch Bending
Stretch bending involves clamping the ends of the workpiece and applying tension while bending it around a die. This method is commonly used for bending tubes and profiles.
Applications:
- Automotive frames
- Aerospace components
- Architectural structures
Advantages:
- Reduces springback
- Suitable for long and slender workpieces
- Produces smooth and consistent bends
Challenges:
- Requires specialized equipment
- Limited to certain material types
4. Roll Bending
Roll bending uses a set of rollers to gradually bend the workpiece into a curved shape. This method is ideal for creating large-radius bends or cylindrical shapes.
Applications:
- Tubes and pipes
- Cylindrical tanks
- Curved panels
Advantages:
- Capable of producing large-radius bends
- Suitable for continuous bending operations
- Minimal material deformation
Challenges:
- Limited to curved shapes
- Requires precise control of roller positions
5. Roll Forming
Roll forming is a continuous bending process that uses a series of rollers to shape the workpiece into a desired profile. This method is commonly used for producing long, complex shapes with consistent cross-sections.
Applications:
- Metal roofing and siding
- Structural components
- Automotive trim
Advantages:
- High production rates
- Consistent quality for long workpieces
- Suitable for complex profiles
Challenges:
- High initial setup costs
- Limited flexibility for short runs
Deformation Characteristics of Sheet Metal Bending
Regardless of the bending method used, the deformation process follows certain common principles:
1. Material Behavior During Bending
When a sheet metal workpiece is bent, the outer surface undergoes tensile stress, while the inner surface experiences compressive stress. The neutral axis remains relatively unchanged in length. The amount of deformation depends on factors such as material properties, bend radius, and bending angle.
2. Springback
Springback is a phenomenon where the material partially returns to its original shape after bending. This occurs due to the elastic recovery of the material. To compensate for springback, manufacturers often overbend the workpiece or use specialized tooling.
3. Bend Allowance and Bend Deduction
Bend allowance refers to the length of the neutral axis in the bend area, while bend deduction accounts for the material’s deformation. Accurate calculations of these values are essential for achieving precise bends.
4. Material Thinning and Thickening
During bending, the material on the outer surface thins due to tensile stress, while the inner surface thickens due to compressive stress. This effect is more pronounced with smaller bend radii and thicker materials.
Factors Influencing Sheet Metal Bending
Several factors must be considered to achieve optimal bending results:
1. Material Properties
The material’s tensile strength, ductility, and hardness affect its ability to bend without cracking or breaking. Softer materials, such as aluminum, are easier to bend than harder materials, such as stainless steel.
2. Bend Radius
The bend radius should be appropriate for the material thickness and type. A smaller bend radius increases the risk of cracking, while a larger radius may result in excessive springback.
3. Tooling Design
The design of the punch and die influences the quality of the bend. Sharp tools are required for precise bends, while rounded tools are used for larger radii.
4. Lubrication
Proper lubrication reduces friction between the workpiece and the tooling, minimizing wear and improving bend quality.
5. Machine Calibration
Regular calibration of bending machines ensures consistent results and prevents deviations caused by machine wear or misalignment.
Applications of Sheet Metal Bending
Sheet metal bending is used in a wide range of industries, including:
1. Automotive Industry
- Body panels
- Chassis components
- Exhaust systems
2. Aerospace Industry
- Structural frames
- Engine components
- Wing and tail sections
3. Construction Industry
- Metal roofing and siding
- Structural beams
- HVAC ductwork
4. Consumer Electronics
- Enclosures and casings
- Heat sinks
- Mounting brackets
Conclusion
Sheet metal bending is a versatile and essential process in modern manufacturing. By understanding the deformation principles and selecting the appropriate bending method, manufacturers can produce high-quality components that meet precise specifications. Whether you are working with press brakes, folding machines, or roll forming equipment, optimizing the bending process requires careful consideration of material properties, tooling design, and machine calibration.
By applying the insights and techniques outlined in this guide, you can enhance the efficiency and accuracy of your sheet metal bending operations, ensuring consistent results and reducing production costs. As technology continues to advance, new bending methods and tools will further expand the possibilities for creating complex and innovative designs.
